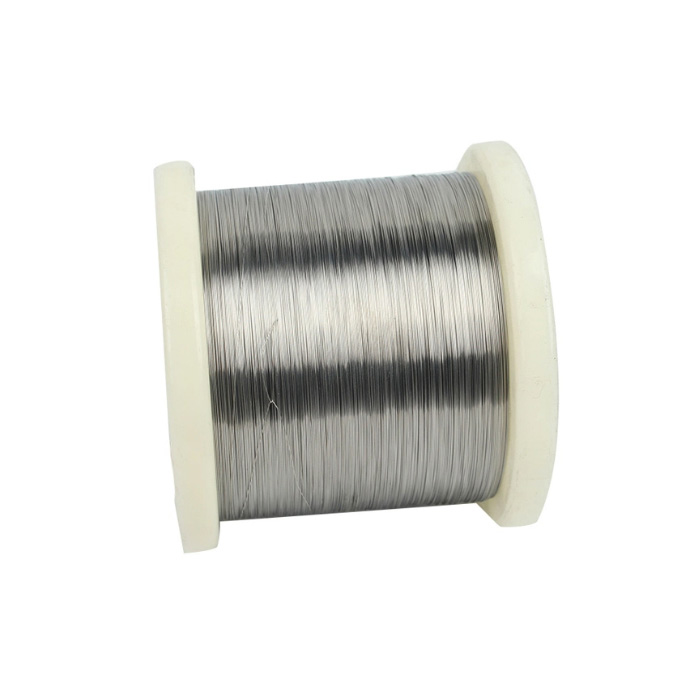

Factory Supply Nickel Alloy Heating Wire

Baoji Xinyuanxiang Metal Products Co., Ltd. primarily engages in the sales of titanium, nickel, tungsten, niobium, zirconium, as well as titanium, copper, nickel, and stainless steel composite materials; it also specializes in the design and manufacturing of non-ferrous metal materials, and in the processing and sales of titanium equipment, spare parts, and standard components.

We are based in Shaanxi, China, start from 2012,sell to Eastern Europe(25.00%),North America(10.00%),Southeast Asia(10.00%),South Asia(8.00%),South America(7.00%),Africa(6.00%),Southern Europe(6.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Northern Europe(5.00%),Oceania(4.00%),Central America(4.00%). There are total about 11-50 people in our office.

Model NO.	Nickel Alloy Heating Wire
Chemical Composition-3	99% Min
Color	Bright
Application	Heating Element or Resistor
Specification	Customized
Origin	China
Production Capacity	1000kgs/Week
Chemical Composition	Nickel
MOQ	2kg
Wire Diameter	0.02mm-6mm
Transport Package	Carton or Export Wood Box
HS Code	7505220000

Specification

1) Name: nickel-chromium wire

2) Diameter: 0.018mm-10mm

3) Model Number: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

4) OEM: accept

5) Feature: high nickel, high resistance

6) Condition: Bright, Annealed, Soft

7) Application: heater,furnace,boiler,oven,etc

Dimension and tolerance

Alloy Type	Diameter (mm)	Resistivity (μΩm) (20°C)	Tensile Strength (N/mm²)	Elongation (%)	Bending Times	Max.Continuous Service Temperature (°C)	Working Life (hours)
Cr20Ni80	<0.50	1.09±0.05	850-950	>20	>9	1200	>20000
	0.50-3.0	1.13±0.05	850-950	>20	>9	1200	>20000
	>3.0	1.14±0.05	850-950	>20	>9	1200	>20000
Cr30Ni70	<0.50	1.18±0.05	850-950	>20	>9	1250	>20000
Cr30Ni70	≥0.50	1.20±0.05	850-950	>20	>9	1250	>20000
Cr15Ni60	<0.50	1.12±0.05	850-950	>20	>9	1125	>20000
Cr15Ni60	≥0.50	1.15±0.05	850-950	>20	>9	1125	>20000
Cr20Ni35	<0.50	1.04±0.05	850-950	>20	>9	1100	>18000
Cr20Ni35	≥0.50	1.06±0.05	850-950	>20	>9	1100	>18000

Nichrome wires

NiCr alloy grade: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30.

1)NiCr 80:20 - Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.

2)NiCr 70:30 - Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.

3)NiCr 60:15 - Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.

4)NiCr 40:20 - Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.

5)NiCr 30:20/ NiCr 20:25 - Industrial furnaces (upto 1050°C), heating elements of cooking equipment.
